NAVAN CNX200
Office-in-a-Box Solution for Small Businesses
Overview
NAVAN CNX200 is an all-in-one office solution for small businesses and enterprise branch offices with up to 24 users. It combines the functionalities of IP-PBX, Data router, Wi-Fi access point, VoIP-GSM gateway, VPN and Firewall Security in a compact and converged platform. A true office-in-a-box, CNX200 innovates the way small businesses communicate and manage infrastructure, so that they can increase productivity, lower costs and enhance collaboration with customers and suppliers.
All-in-One Office Solution is ideal for
Small Businesses
CNX200 enables small offices and branch offices with business-class IP telephony, wireless mobility, high speed internet accessibility, enhanced security and remote site connectivity from an affordable and easy to manage platform.
Service Providers
CNX200 integrates voice and data services together so that service providers can offer managed communication services and broadband internet over leased line or 3G/HSPA as a bundled solution to their customers.
Key Features
VoIP Telephony
Get the power of business-class telephony features as available with large systems such as mobility, teleworking, voice mail, auto-attendant, shared lines, remote extensions, web-based management and lot more.
Data Networking
Consolidate wired and wireless data networks together using built-in Wi-Fi access point and 8 Port LAN Switch to simplify deployment and management of IT infrastructure. Also routing features such as port forwarding/triggering, NAT/STUN, DHCP server, static route and quality of service eliminates the need to install external data routers.
Internet Accessibility
Ensure seamless business continuity with multiple options for internet connectivity. Ethernet, 3G/HSPA embedded modules and USB modems are supported with auto fall-back options.
Workplace Mobility
Enable wireless access to voice and data services on laptop, mobile handsets and tablets. With built-in Wi-Fi connectivity, users can surf internet, make/receive calls using VoIP/GSM/PSTN lines, share presence and IM while roaming anywhere in the office.
GSM/3G Connectivity
Stay connected with business communications even in non-availability of leased line networks. Embedded GSM3G modules and USB modems connectivity helps users to make/receive calls and surf high speed internet on mobile phones, laptops and PDAs.
Virtual Private Networking
Extend secure access to business applications and information with central offices, remote workers and partners. Standards-based SSL/IPsec/PPTP/L2TP VPN tunneling protocols makes CNX200 interoperable with other VPN enabled devices.
Smartphones as Office Extensions
Turn any Android phone or iPhone smartphones into office extensions. It delivers entire portfolio of call management features such as dialing by extension number, caller ID, call hold, transfer, 3-way conference and voice mail access on Android/iPhone smartphones.
Phone Options
Empower users to stay in touch with business communications from any part of the world. Users can flexibly select from IP phones, PC softphones, analog phones and Android/iOS smartphones as office extensions.

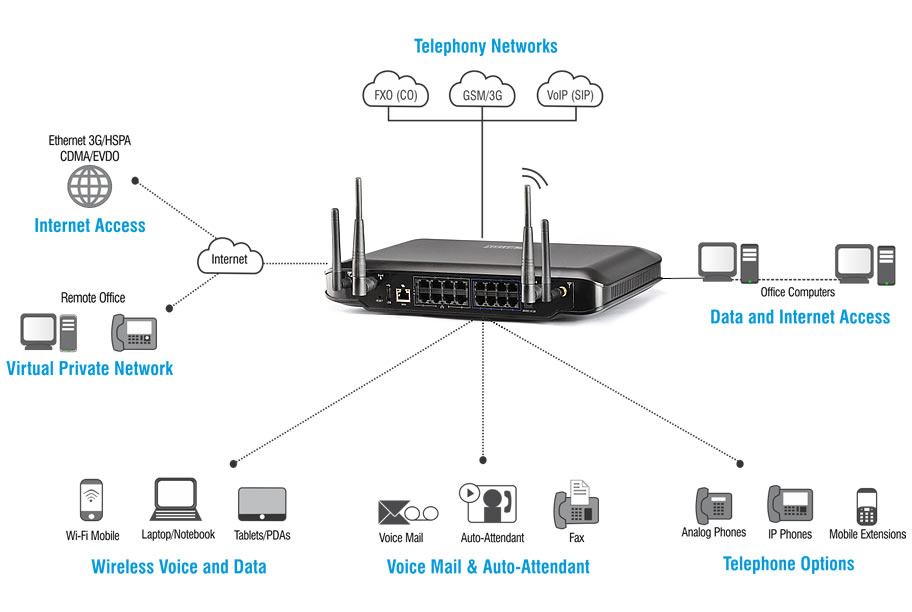

Connectivity Options
Product Variants
| CNX244 | 4 FXO, 4 FXS, 8 SIP Trunks, 8 IP Users, Wi-Fi, 1 USB and 8 LAN Switch Ports |
| CNX226 2G | 2 FXO, 6 FXS, 8 SIP Trunks, 8 IP Users, Wi-Fi, 1 USB, 8 LAN Switch Ports and 1GSM Module |
| CNX226 3G | 2 FXO, 6 FXS, 8 SIP Trunks, 8 IP Users, Wi-Fi, 1 USB, 8 LAN Switch Ports and 1 3G/GSM Module |
| CNX226 2G2 | 2 FXO, 6 FXS, 8 SIP Trunks, 8 IP Users, Wi-Fi, 1 USB, 8 LAN Switch Ports and 2 GSM Modules |
| CNX208 3G2 | 8 FXS, 8 SIP Trunks, 8 IP Users, Wi-Fi, 1 USB, 8 LAN Switch Ports and 2 3G/GSM Modules |
Specifications
Voice Trunks and Extensions:
| 2/4 Analog Lines (FXO) | To Connect Analog Telephone Lines |
| 4/6/8 Analog Users (FXS) | To Connect Single Line Telephones, Fax, PoS devices |
| 8 VoIP (SIP) Trunks | To Subscribe Services from 8 Different SIP/VoIP Providers Ready Interoperability with leading VoIP Carriers |
| Up to 24 VoIP Users | 24 Users (8 Pre-activated, Another 16 with Licence Key) Matrix SPARSH VP248 IP Phones, SIP Phones, PC Softphones, Mobile Extensions |
| Up to 2 GSM | To Make Voice Calls over Cellular GSM Networks Quad-Band GSM (850/900/1800/1900 MHz) Support |
| Up to 3G/GSM | To Make Voice Calls and Access High-speed Internet over 3G/HSPA Networks Tri-Band UMTS/HSPA (850/900/1800 MHz and 900/1800/2100 MHz) Support |
| VoIP-GSM-PSTN Gateway | Built-in Gateways for Call Routing between GSM, VoIP and PSTN lines |
| Call Management | Call hold/transfer/forward/park/conference, Toll control, Class of service, Account codes, Hunt groups, Day/Night modes, Speed dial and lot more. |
VoIP Telephony:
| Standard | SIPv2 (RFC3261) |
| VoIP Codecs | G.711 (A/μ Law), G.723, G.729AB, GSM-FR and iLBC |
| VoIP Channels | 12 VoIP Channels |
| Concurrent VoIP Calls | 6 Concurrent VoIP Calls |
| Call Forking | Parallel Ringing on Maximum Three IP Devices |
| Fax over IP | T.38 and Pass-Through |
| Quality of Service | SIP and RTP |
| Echo Cancellation | G.168 Line Echo Cancellation |
| Dynamic DNS | Client to subscribe Dynamic DNS service |
| Peer-to-Peer Calls | 1000 Entries |
| NAT and STUN | For IP Devices located behind NAT Router and LAN |
| VoIP Security | TLS/SRTP |
Data Networking:
| LAN Switch | 8 10/100 Mbps Switched LAN Ports |
| WAN Options (with Auto Fall-back) |
Ethernet WAN - 1 10/100 Mbps WAN Port 3G WAN - 2 3G/HSPA Modules (DL/UL – 7.2/5.76 Mbps) USB Port – 3G/GSM/CDMA/EVDO USB Modem Connectivity |
| Quality of Service (QoS) | Applications, DSCP, Destination/Source MAC/IP |
| Advance Routing | Port Forwarding/Triggering, Static Route, DNS Proxy, MAC Address Cloning |
| Networking Protocols | TCP/IP, UDP, RTP, SNTP, NAT & STUN, DHCP, DNS, Dynamic DNS |
Wireless LAN (Wi-Fi):
| Standard | IEEE 802.11 b/g/n (2.4 GHz) |
| Security | WEP, WPA,WPA2 |
| Wi-Fi Features | Wireless Multimedia (WMM) MAC Address Access Control Channel Width and Frequency Selection |
| Antenna Type | 2 Omni-directional Antennas with Diversity |
Firewall & Security:
| Firewall Protection | SPI Firewall, IDS & IPS, Block Ping/ICMP/IDENT, Port Scan Restriction, DMZ MAC Address Filtering |
| Access Control & Content Filtering | Website blocking by URL and Keyword Block Destination by IP Address and Application Port |
| Certificate Management | Self-signed and Trusted Root Certificate Generation and Management |
Virtual Private Networking:
| Virtual Private Network | Remote Access (Server) Site-to-Site (Client) |
| VPN Tunnelling | SSL, IPsec, PPTP, L2TP Protocols |
| VPN Tunnels | Up to 80 VPN Tunnels (20 Tunnels for each SSL, IPsec, PPTP and L2TP) |
| Encryption | Hardware based AES/DES/3DES, MPPE |
| Authentication | MDS, SHA-1 |
| IKE Authentication | Pre-shared Keys, Digital Signature |
Voice Mail System:
| Auto-Attendants | Greetings by Day, Night, Break Hours and Holidays Attend 5 Callers at a time 4 Graphs each with 64 Nodes |
| Number of Mailboxes | 32 User and 5 Group Mailboxes |
| Greetings and Messages | Personalized Greetings for Mailbox Users |
| Unified Messaging | Voice Mail to Email Notification |
| Notification Alerts | Message Wait Lamp, Change in Dial Tone, Voice Message, LED indication |
| Conversation Recording | Built-in 4GB Storage for up to 72 Hours Recording (Requires License Activation) |
Monitoring and Management:
| Administration | Web-based Remote Management (HTTP/HTTPS) System Engineer and Administrator Mode |
| Localization | Call Progress Tones, CLIP Variants, Impedance Matching, Time Zones, Day Light Saving, Date-Time Format |
| CDR Reports | 12000 Call Records (Incoming, Outgoing, Internal) with Various Call Filters |
| LED Indications | Total 12 LEDs for Power, System, WLAN, WAN, LAN Switch Ports |
| Back-up | System Software, Call Detail Records (CDR) andConfiguration |
| Languages Supported | English, Spanish, Portuguese, French, German, Italian |
Power Supply:
| External Power Adaptor | 24VDC, 2A |
| Power Consumption (Typical) | 20W |
Mechanical:
| Dimension (WxHxD) | 320x51x200 mm |
| Installation | Wall Mount, Table-Top, Rack Mount |
| Unit Weight | Max. 1.25kg (2.75lbs) |
Environmental:
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Operating Humidity | 5-95% RH, Non-Condensing |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Storage Humidity | 0-95% RH, Non-Condensing |
