ETERNITY ME
The IP-PBX with Seamless Mobility and Universal Connectivity
Overview
ETERNITY ME, the advance communication system, offers convenient features and flexible functionalities to large businesses in line with their changing needs. The reliable architecture and easy to use platform delivers the unmatched performance to meet the needs of controlling costs and managing operational expenses. ETERNITY ME supports any combination of TDM, IP and GSM trunks and subscribers along with networking of multiple systems across locations.
ETERNITY ME outruns competition for mission critical applications such as corporate, government entities, call center and power line communications with its hot-swappable cards based architecture and optional redundancy. Besides TDM and IP interfaces, ETERNITY ME supports legacy interfaces such as E&M and Magneto interfaces.

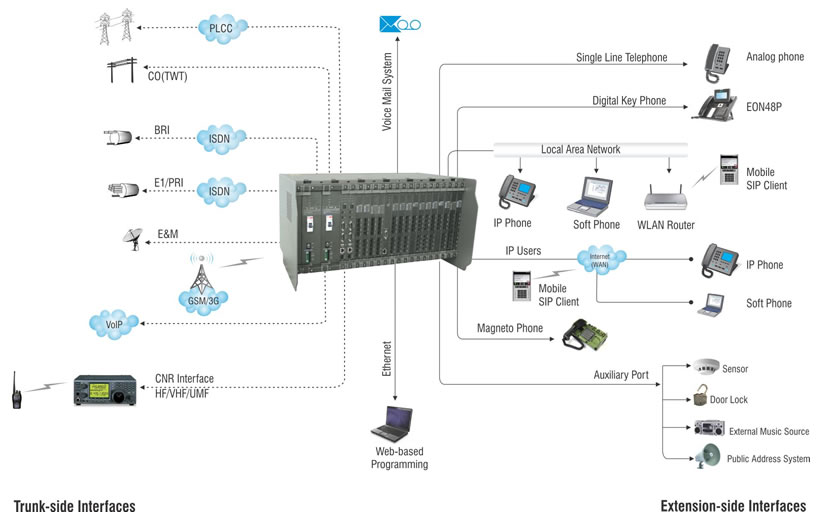

ETERNITY ME Universal Connectivity
Flexible Subscriber Options
Analog phones (SLT)
EON48S
- 2x24 and Swivel LCD
- 17 Touch-Sense Keys for Features
- 16 User-Programmable Keys
- Optional 64 Keys Expansion Unit (DSS16x4)
- Backlit and Contrast Control
- Full-Duplex Speaker
- Ringer and Message Wait Lamp
- Desk-Top and Wall Mounting
EON48P
- 6x24 and Swivel LCD
- 17 Touch-Sense Keys for Features
- 16 User-Programmable Keys
- Optional 64 Keys Expansion Unit (DSS16x4)
- Backlit and Contrast Control
- Full-Duplex Speaker
- Ringer and Message Wait Lamp
- Desk-Top and Wall Mounting
EON310
- 2 Line LCD with Backlit
- Fixed Function Keys Voice Mail, Mute, Do Not Disturb, Forward, Logs, Speaker
- Fixed Function Keys (Without LED) Hold, Conference, Contacts, Transfer
- 12 DSS/BLF Keys for Feature, Line, Extension
- Headset Interface – 3.5mm, RJ9
- Volume Adjust Keys
- High Quality Full Duplex Speaker Phone
- Adjustable Desk Stand
- Message Wait and Ringer Lamp
EON510
- 240*64 Pixels Graphical LCD with Backlit
- 4 Programmable Context Sensitive Keys
- Alphanumeric Dial pad Keys
- Fixed Function Keys (with LED) – Voice Mail, Mute, Do Not Disturb, Headset, Speaker
- Fixed Function Keys (without LED) – Hold, Conference, Redial ,Transfer
- Built-in 16 DSS Keys for Feature, Line, Extension
- Message Wait and Ringer Lamp
- Headset Interface – 3.5mm, RJ9
- Adjustable desk stand
- High Quality Full Duplex Speaker Phone
- Volume Adjust Keys
SPARSH VP248S
- 3 SIP Accounts
- LAN and WAN Ports
- PoE Option
- User-Programmable Keys
- Anonymous Call and Selective Call Rejection
- Auto Configuration
- Auto Answer with Headset Interface
- Conference
- Peer-to-Peer Calling
- Dialed, Received, Missed and Rejected Call Logs
- G.711, G.722, G.723, G.726 and G.729AB
- DHCP, PPPoE, NAT and STUN
- Least Cost Routing
- Message Wait Indication
- Voice Mail Key
- Multiple Call Handling (4 Calls)
- Phone Book with 100 Entries
- Ringer, Speech and LCD Controls
- Desk-Top and Wall Mounting
- Web Configuration
SPARSH VP310
- 2 Line LCD with Backlit
- Fixed Function Keys (With LED) Voice Mail, Mute, Do Not Disturb, Forward, Logs, Speaker
- Fixed Function Keys (Without LED) Hold, Conference, Contacts ,Transfer
- 12 DSS/BLF Keys for Feature, Line, Extension
- PC and LAN Ethernet Ports
- Headset Interface – 3.5mm, RJ9
- High Quality Full Duplex Speaker Phone
- Adjustable Desk Stand
- Message Wait and Ringer Lamp
- Power over Ethernet (IEEE 802.3af)
- Plug-n-Play
SPARSH VP330E
- 4.3" Large Color Touch Screen Display
- Ergonomic and Modern Design
- Fixed Function Keys – Hold, Transfer, Conference, Voice Mail, Headset, Mute
- Superior Voice Quality with HD Audio
- On-screen BLF monitoring – 18 Contacts
- Presence Indication
- Local Phonebook (500 entries) with LDAP Client
- PC and LAN Ethernet Ports
- Power over Ethernet (IEEE 802.3af)
- Built-in 12 DSS keys for Feature, Line, Extension
SPARSH M2S (Mobile Softphone)
- Comprehensive Call Management
- One-Touch Access to PBX Features
Call Hold, Transfer, Conference, Return, Forward, Pick-up - Corporate Directory Integration
- Video Calling
- Presence Sharing and Instant
Messaging - Voice Mail Access
- Conversation Recording
- Busy Lamp Field (BLF) Keys
Application

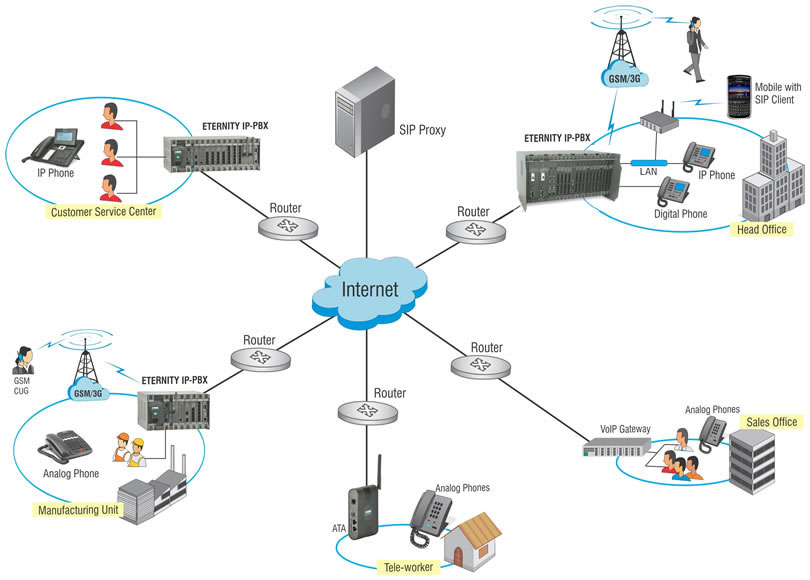

ETERNITY ME in the Distributed Environment for Large Enterprises
.jpg)
Key Features
Avail the Flexibility and Cost-effectiveness of IP Telephony to control operational expenses
- Simultaneous SIP Proxy and Peer-to-Peer calling
- Variety of SIP Endpoints
- Mobile and Portable Extensions
- IM and Presence Sharing
Improve Staff Productivity with the set of convenient voice features to generate more business opportunities
- Built-in Auto-attendant
- Voice Mail with Email Notification
- Music-on-Hold
- Department Groups
Improve Staff Efficiency with Converged and Collaborative communication to increase profitability
- Innovative business applications with CTI interface
- Bulk messages with SMS gateway functionality
- Hybrid TDM-IP Platform
- Unified Messaging
- Integrated Gateway Functionality
- Multi-party Conferencing
- Networking of Multiple Sites over QSIG ISDN and SIP
- Fax over IP (T.38 and Pass-through)
Bring Seamless On-site and Off-site Staff Mobility for anytime connectivity with office and value chain partners
- On the Move Access to Voice Mail
- GSM/UMTS(3G) Trunks
- Wireless SIP subscribers over Wi-Fi
- Automatic DISA
- Call back on Mobile Trunk
- No need of costly DECT phones
Simplified Management to increase operational ease and optimizethe resource utilization
- Modular Architecture for easy scalability, troubleshooting and maintenance
- Browser based administration
- Comprehensive configuration menus
- Multiple options for system programming – SLT, DKP, Internet, Mobile
Ensure Business Continuity under critical conditions
- Optional Redundancy for critical function cards
- Hot-swappable expansion cards
- Automatic Fail-over
Specifications
| ETERNITY ME16S | |
|---|---|
 |
|
| VoIP Trunks | 32 |
| GSM/UMTS (3G) Trunks | Up to 64 |
| CO Ports | Up to 128 |
| ISDN T1/E1 PRI Channels | Up to 240 Ch. (8 Ports) |
| ISDN BRI Channels | Up to 64 Ch. (32 Ports) |
| IP Subscribers | Up to 999 |
| Analog Subscribers | Up to 512 |
| Digital Subscribers | Up to 128 |
| Auxiliary Ports |
|
| Voice Mail System | 16 Ports with up to 512 Mail Boxes |
| Power Supply |
|
| Power Consumption | 170W |
| Dimensions | 26" x 12.42" x 15.68" |
| Unit Weight | 10.5Kg |
| Redundancy | Yes (AC & DC Power Supply and Control Cards) |
| Hot-Swap | Yes (For Expansion cards) |
| Installation | Wall Mount, Table Top |
