ETERNITY LE
The IP-PBX with Seamless Mobility and Universal Connectivity
Overview
ETERNITY LE is a powerful enterprise communications solution that supports advanced applications, true business mobility and designed to scale to meet the needs of growing businesses. It is a future-proof, reliable, flexible and easy to manage voice communication system. It is an ideal solution for medium-sized businesses aspiring to be large, large corporations, large hotels and hospitals. The advanced call capabilities and comprehensive enterprise-grade features enhance customer responsiveness while improving efficiency and reduce costs.

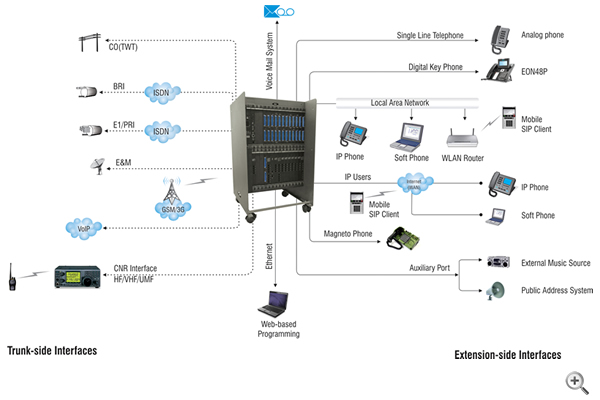

ETERNITY LE Connectivity Diagram
Flexible Subscriber Options
Analog phones (SLT)
EON48S
- 2x24 and Swivel LCD
- 17 Touch-Sense Keys for Features
- 16 User-Programmable Keys
- Optional 64 Keys Expansion Unit (DSS16x4)
- Backlit and Contrast Control
- Full-Duplex Speaker
- Ringer and Message Wait Lamp
- Desk-Top and Wall Mounting
EON48P
- 6x24 and Swivel LCD
- 17 Touch-Sense Keys for Features
- 16 User-Programmable Keys
- Optional 64 Keys Expansion Unit (DSS16x4)
- Backlit and Contrast Control
- Full-Duplex Speaker
- Ringer and Message Wait Lamp
- Desk-Top and Wall Mounting
EON310
- 2 Line LCD with Backlit
- Fixed Function Keys Voice Mail, Mute, Do Not Disturb, Forward, Logs, Speaker
- Fixed Function Keys (Without LED) Hold, Conference, Contacts, Transfer
- 12 DSS/BLF Keys for Feature, Line, Extension
- Headset Interface – 3.5mm, RJ9
- Volume Adjust Keys
- High Quality Full Duplex Speaker Phone
- Adjustable Desk Stand
- Message Wait and Ringer Lamp
EON510
- 240*64 Pixels Graphical LCD with Backlit
- 4 Programmable Context Sensitive Keys
- Alphanumeric Dial pad Keys
- Fixed Function Keys (with LED) – Voice Mail, Mute, Do Not Disturb, Headset, Speaker
- Fixed Function Keys (without LED) – Hold, Conference, Redial ,Transfer
- Built-in 16 DSS Keys for Feature, Line, Extension
- Message Wait and Ringer Lamp
- Headset Interface – 3.5mm, RJ9
- Adjustable desk stand
- High Quality Full Duplex Speaker Phone
- Volume Adjust Keys
SPARSH VP248S
- 3 SIP Accounts
- LAN and WAN Ports
- PoE Option
- User-Programmable Keys
- Anonymous Call and Selective Call Rejection
- Auto Configuration
- Auto Answer with Headset Interface
- Conference
- Peer-to-Peer Calling
- Dialed, Received, Missed and Rejected Call Logs
- G.711, G.722, G.723, G.726 and G.729AB
- DHCP, PPPoE, NAT and STUN
- Least Cost Routing
- Message Wait Indication
- Voice Mail Key
- Multiple Call Handling (4 Calls)
- Phone Book with 100 Entries
- Ringer, Speech and LCD Controls
- Desk-Top and Wall Mounting
- Web Configuration
SPARSH VP310
- 2 Line LCD with Backlit
- Fixed Function Keys (With LED) Voice Mail, Mute, Do Not Disturb, Forward, Logs, Speaker
- Fixed Function Keys (Without LED) Hold, Conference, Contacts ,Transfer
- 12 DSS/BLF Keys for Feature, Line, Extension
- PC and LAN Ethernet Ports
- Headset Interface – 3.5mm, RJ9
- High Quality Full Duplex Speaker Phone
- Adjustable Desk Stand
- Message Wait and Ringer Lamp
- Power over Ethernet (IEEE 802.3af)
- Plug-n-Play
SPARSH VP330E
- 4.3" Large Color Touch Screen Display
- Ergonomic and Modern Design
- Fixed Function Keys – Hold, Transfer, Conference, Voice Mail, Headset, Mute
- Superior Voice Quality with HD Audio
- On-screen BLF monitoring – 18 Contacts
- Presence Indication
- Local Phonebook (500 entries) with LDAP Client
- PC and LAN Ethernet Ports
- Power over Ethernet (IEEE 802.3af)
- Built-in 12 DSS keys for Feature, Line, Extension
SPARSH M2S (Mobile Softphone)
- Comprehensive Call Management
- One-Touch Access to PBX Features
Call Hold, Transfer, Conference, Return, Forward, Pick-up - Corporate Directory Integration
- Video Calling
- Presence Sharing and Instant
Messaging - Voice Mail Access
- Conversation Recording
- Busy Lamp Field (BLF) Keys
Application
ETERNITY ME in the Distributed Environment for Large Enterprise
Key Features
Avail the Flexibility and Cost-effectiveness of IP Telephony to control operational expenses
- Extend Enterprise Mobility on Andorid/iOS based Smartphones
- Simultaneous SIP Proxy and Peer-to-Peer calling
- Variety of SIP Endpoints
- Mobile and Portable Extensions
- IM and Presence Sharing
Improve Staff Productivity with the set of convenient voice features to generate more business opportunities
- Built-in Auto-attendant
- Voice Mail with Notification
- Music-on-Hold
- Department Groups
Improve Staff Efficiency with Converged and Collaborative communication to increase profitability
- Innovative business applications with CTI interface
- Bulk messages with SMS gateway functionality
- Hybrid TDM-IP Platform
- Unified Messaging
- Integrated Gateway Functionality
- Built-in 45-party Conferencing
- Networking of Multiple Sites over QSIG ISDN and SIP
- Fax over IP (T.38 and Pass-through)
Bring Seamless On-site and Off-site Staff Mobility for any time connectivity with office and value chain partners
- On the Move Access to Voice Mail
- Experience Business Mobility on Android/iPhone Smartphones
- GSM Trunks
- Wireless SIP subscribers over Wi-Fi
- No need of costly DECT phones
Simplified Management to increase operational ease and optimize the resource utilization
- Modular Architecture for easy scalability, troubleshooting and maintenance
- Browser based administration
- Comprehensive configuration menus
Ensure Business Continuity under critical conditions
- Optional Hot-Standby for CPU and DC Power Supply
- Hot-swappable expansion cards
Specifications
| ETERNITY LE | ||
| VoIP Trunks | 32 | |
| GSM Trunks | Up to 128 | |
| CO Ports | Up to 128 | |
| ISDN T1/E1 PRI Channels | Up to 720 Ch. (24 Ports) | |
| ISDN BRI Channels | Up to 64 Ch. (32 Ports) | |
| IP Subscribers | Up to 1500* | |
| Analog Subscribers | Up to 1344 | |
| Digital Subscribers | Up to 128 | |
| Auxiliary Ports |
|
|
| Voice Mail System | 16 Ports with Auto-Attendant and dedicated Mailbox for each type of extension (Analog, Digital, IP) | |
| Power Supply | 48 VDC | |
| Power Consumption (Typical with 25% Analog Subscribers Traffic) |
450W | |
| Dimensions (WxHxD) | 17.65"x29.52"x18.70" | |
| Unit Weight | 25Kg | |
| Hot Redundancy | Yes (DC Power supply and Control cards) | |
| Hot-Swap | Yes (For Expansion Cards) | |
| Installation | Wall Mount, Table Top, 19" Rack Mount | |
| *From onwards ETERNITY LE V12R5.1.3, VoIP Card V2R6 | ||
